Hot Isostatic Pressing (HiPping) Capabilities

24/7 Production Capacity

PTI offers a broad range of hot isostatic pressing processing (HIPping) capabilities. Our modern, state-of-the-art facilities are designed for cost-effective handling of customer requirements include 16″ diameter to 30″ diameter high pressure production units. Our 7-day, 24-hour operations allows PTI to offer excellent turnaround. The molybdenum furnace with argon atmosphere vessels can provide enhanced cooling capabilities, R&D capabilities, pressures to 30,000 psi, and temperature capabilities to 2550° F.

Thirteen (13) Units up to 30″ in Dia. & 105″ High
Pressures up to 30,000 psi (207 MPa)
Temperatures to 2550° F (1400° C)

ISO 9001 & AS9100 Certified, NADCAP Accredited
Approved by P&W, GE, RR, Lockheed, Safran…

Industry Certifications Backed by 99% Uptime

PTI’s quality system is Nadcap, ISO 9001 and AS9100 Certified. We are an approved supplier to the aerospace industry including Alstom, Avio, Eaton, GE, Hamilton Sundstrand, Honeywell, IHI, Lockheed, MTU, NASA, Parker, Pratt & Whitney, Rolls-Royce, Snecma, Siemens, SpaceX, Textron, Timken, Volvo and Wood Group.

All PTI hot isostatic pressing equipment performs within stringent customer requirements and is exceptionally reliable. PTI maintains all of the HIPping equipment and stocks a controlled inventory of back up components. The result? Over 99% uptime.

Approved By Major Industry Leaders

Alstom Power
Avio Aero
Eaton Aerospace
GE Aviation
GE Energy
Hamilton Sundstrand
Honeywell

IHI
Lockheed Martin
MTU Aero Engines
NASA
Parker Aerospace
Pratt & Whitney – Canada

Pratt & Whitney – USA
Rolls-Royce – Canada
Rolls-Royce – UK
Rolls-Royce – USA
Snecma Safran
Seimens – Germany

Seimens – USA
SpaceX
Textron Aviation
Timken
Volvo
Wood Group
And More!

Shared Customer HIP Cycles

Lower your costs by taking advantage of PTI’s Shared Customer HIP Cycles program.

PTI can match your small batch HIP run with other parts requiring the same processing parameters. PTI’s Shared Customer HIP Cycle runs offer the same high quality processing at a reduced cost.

Contact Us for More Details

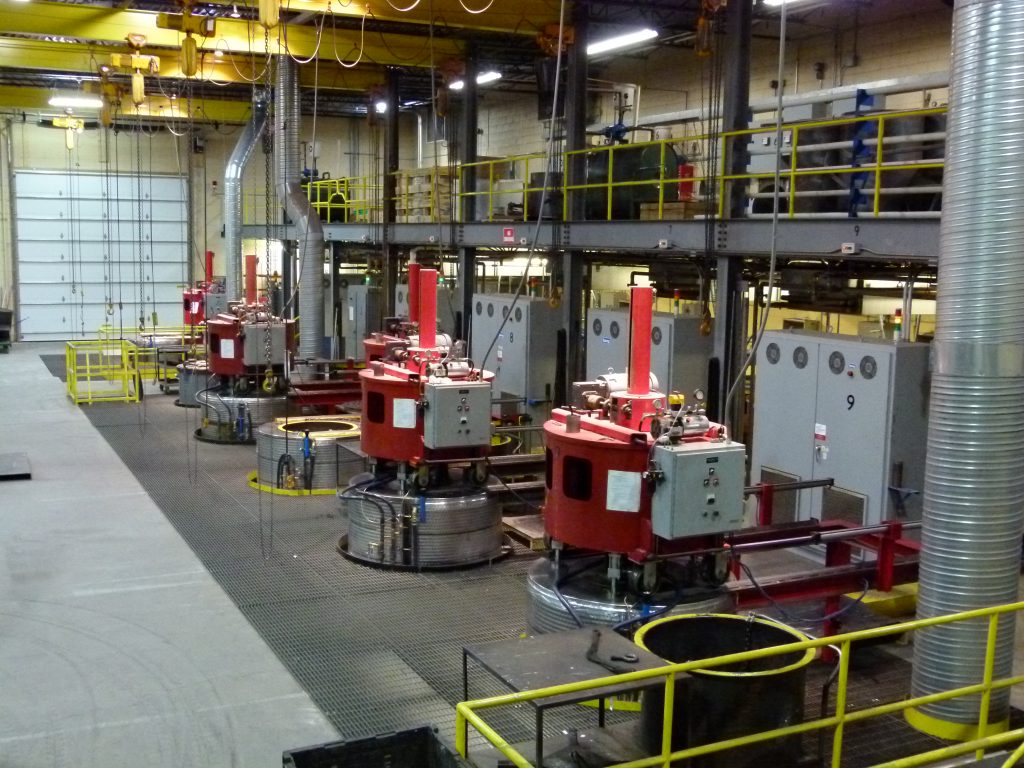

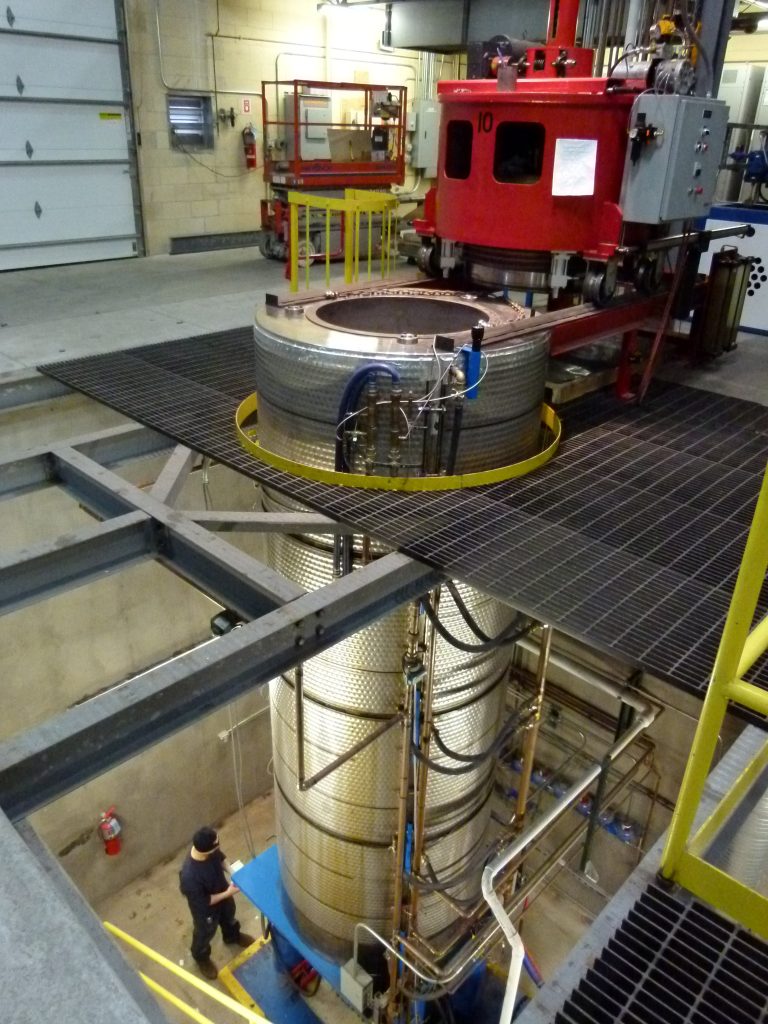

Our HIP Units

PTI operates a fleet of 13 hot isostatic pressing units, providing the capacity and flexibility to support everything from research work to high-volume production.

Contact Us Today

Warminster, PennsylvaniaFacility Address

Unit	Diameter	Length	Maximum Temp.	Maximum Pressure
HIP2	16″ (405 mm)	42″ (1068 mm)	2550° F (1400° C)	15,000 PSI (103 MPa)
HIP4	20″ (505 mm)	60″ (1520 mm)	2550° F (1400° C)	30,000 PSI (207 MPa)
HIP5	30″ (760 mm)	70″ (1780 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP12	30″ (760 mm)	105″ (2667 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)

Concord, OhioFacility Address

Unit	Diameter	Length	Maximum Temp.	Maximum Pressure
HIP3	16″ (405 mm)	42″ (1068 mm)	2550° F (1400° C)	15,000 PSI (103 MPa)
HIP6	30″ (760 mm)	90″ (2285 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP7	30″ (760 mm)	90″ (2285 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP8	30″ (760 mm)	90″ (2285 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP9	30″ (760 mm)	90″ (2285 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP10	30″ (760 mm)	105″ (2667 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
HIP11	30″ (760 mm)	105″ (2667 mm)	2450° F (1340° C)	25,000 PSI (170 MPa)
